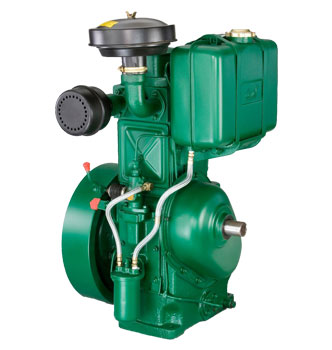

5.0 HP Water Cooled (VRC 1)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
PumpSet, Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Agricultural Equipment| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 5.0/3.7 |
| 4 | Bore (mm) | 80.0 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 553 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 7.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.12 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 145 |
| 32 | Engine Gross Weight (kg) | 215 |
| 33 | Overall Dimensions (L x W x H) | 520 x 480 x 793 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 12.0 to 18.0 |
| 37 | Duty Point | |
| Head (mts.) | 15.0 | |
| Discharge (lps) | 16.0 | |
| 38 | Efficiency (%) | 78.0 |
| 39 | Pump Set Net Weight (kg) | 188.0 |
| 40 | Pump Set Gross Weight (kg) | 298.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |

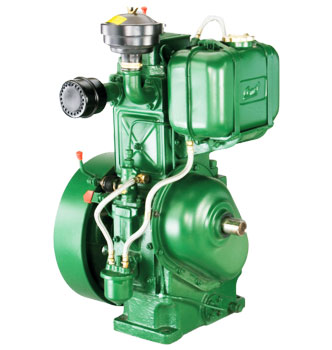

6.5 HP Water Cooled (VRC 4)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 6.5/4.8 |
| 4 | Bore (mm) | 85.0 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 624 |
| 8 | Compression Ratio | 19.0:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 7.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.12 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 145 |
| 32 | Engine Gross Weight (kg) | 215 |
| 33 | Overall Dimensions (L x W x H) | 520 x 480 x 793 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 12.0 to 18.0 |
| 37 | Duty Point | |
| Head (mts.) | 16.0 | |
| Discharge (lps) | 16.0 | |
| 38 | Efficiency (%) | 78.0 |
| 39 | Pump Set Net Weight (kg) | 195.0 |
| 40 | Pump Set Gross Weight (kg) | 305.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |
7.5 HP Water Cooled (VRC 7.5)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 7.5/5.5 |
| 4 | Bore (mm) | 85.0 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1800 |
| 7 | Swept Volume (CC) | 624 |
| 8 | Compression Ratio | 19.0:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 155 |
| 32 | Engine Gross Weight (kg) | 225 |
| 33 | Overall Dimensions (L x W x H) | 520 x 480 x 793 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 20.0 to 26.0 |
| 37 | Duty Point | |
| Head (mts.) | 24.0 | |
| Discharge (lps) | 14.0 | |
| 38 | Efficiency (%) | 70.0 |
| 39 | Pump Set Net Weight (kg) | 205.0 |
| 40 | Pump Set Gross Weight (kg) | 315.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |
8.0 HP Water Cooled (VRC 6)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 8.0/5.9 |
| 4 | Bore (mm) | 95.0 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 780 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 160 |
| 32 | Engine Gross Weight (kg) | 230 |
| 33 | Overall Dimensions (L x W x H) | 520 x 535 x 848 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 100 x 100 |
| 36 | Head Range (mts.) | 12.0 to 16.0 |
| 37 | Duty Point | |
| Head (mts.) | 15.0 | |
| Discharge (lps) | 20.0 | |
| 38 | Efficiency (%) | 66.0 |
| 39 | Pump Set Net Weight (kg) | 205.0 |
| 40 | Pump Set Gross Weight (kg) | 315.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |
10.0 HP Water Cooled (VRC 8)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 10.0/7.4 |
| 4 | Bore (mm) | 102.0 |
| 5 | Stroke (mm) | 116.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 948 |
| 8 | Compression Ratio | 18.8:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 165 |
| 32 | Engine Gross Weight (kg) | 235 |
| 33 | Overall Dimensions (L x W x H) | 520 x 535 x 848 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 12.0 to 18.0 |
| 37 | Duty Point | |
| Head (mts.) | 15.0 | |
| Discharge (lps) | 16.0 | |
| 38 | Efficiency (%) | 76.0 |
| 39 | Pump Set Net Weight (kg) | 215.0 |
| 40 | Pump Set Gross Weight (kg) | 315.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |
12.0 HP Water Cooled (VRC 10)
Specifications
Robust & Sturdy, Optimal Fuel efficiencyApplication
PumpSet, Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Agricultural Equipment| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 12.0/8.83 |
| 4 | Bore (mm) | 102.0 |
| 5 | Stroke (mm) | 116.0 |
| 6 | Rated R. P. M. | 1800 |
| 7 | Swept Volume (CC) | 948 |
| 8 | Compression Ratio | 18.8:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Gear Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.750 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 175 |
| 32 | Engine Gross Weight (kg) | 245 |
| 33 | Overall Dimensions (L x W x H) | 550 x 565 x 848 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
| 35 | Pump Size (mm) | 80 x 65 |
| 36 | Head Range (mts.) | 22.0 to 44.0 |
| 37 | Duty Point | |
| Head (mts.) | 40.0 | |
| Discharge (lps) | 6.0 | |
| 38 | Efficiency (%) | 40.0 |
| 39 | Pump Set Net Weight (kg) | 225.0 |
| 40 | Pump Set Gross Weight (kg) | 335.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |

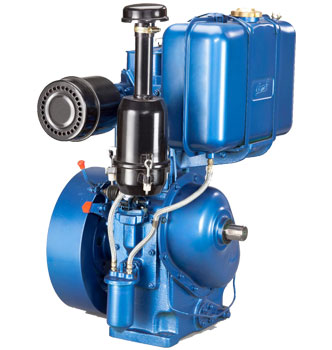

14.0 HP Water Cooled TRB (VRC 14)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets, Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Water |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 14.0/10.3 |
| 4 | Bore (mm) | 114.3 |
| 5 | Stroke (mm) | 120.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 1230 |
| 8 | Compression Ratio | 18.0:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 20.0 Lts |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 033 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 169 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 230 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.750 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 207 |
| 32 | Engine Gross Weight (kg) | 292 |
| 33 | Overall Dimensions (L x W x H) | 550 x 670 x 840 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 724 x 971 |
| 35 | Pump Size (mm) | 80 x 80 |
| 36 | Head Range (mts.) | 30.0 to 34.0 |
| 37 | Duty Point | |
| Head (mts.) | 32.0 | |
| Discharge (lps) | 14.0 | |
| 38 | Efficiency (%) | 64.0 |
| 39 | Pump Set Net Weight (kg) | 267.0 |
| 40 | Pump Set Gross Weight (kg) | 377.0 |
| 41 | Overall Packing Dimensions (L x W x H) (mm) | 1118 x 635 x 997 |
5.0 HP Air Cooled (VAC 5)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 5.0/3.7 |
| 4 | Bore (mm) | 80.0 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 553 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 7.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.12 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 155 |
| 32 | Engine Gross Weight (kg) | 225 |
| 33 | Overall Dimensions (L x W x H) | 525 x 510 x 795 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
6.5 HP Air Cooled (VAC 6.5)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 6.5/4.8 |
| 4 | Bore (mm) | 87.5 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 661 |
| 8 | Compression Ratio | 18.0:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 7.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.2 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.12 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 160 |
| 32 | Engine Gross Weight (kg) | 230 |
| 33 | Overall Dimensions (L x W x H) | 525 x 542 x 827 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
7.5 HP Air Cooled (VAC 7.5)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 7.5/5.5 |
| 4 | Bore (mm) | 87.5 |
| 5 | Stroke (mm) | 110.0 |
| 6 | Rated R. P. M. | 1800 |
| 7 | Swept Volume (CC) | 661 |
| 8 | Compression Ratio | 18.0:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.00 - 1.12 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 165 |
| 32 | Engine Gross Weight (kg) | 235 |
| 33 | Overall Dimensions (L x W x H) | 525 x 542 x 830 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
8.0 HP Air Cooled (VAC 8)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 8.0/5.9 |
| 4 | Bore (mm) | 95.0 |
| 5 | Stroke (mm) | 116.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 822 |
| 8 | Compression Ratio | 17.5:1 |
| 9 | Bearing Type | Bush |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 170 |
| 32 | Engine Gross Weight (kg) | 240 |
| 33 | Overall Dimensions (L x W x H) | 550 x 580 x 830 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |
10.0 HP Air Cooled (VAC 10A)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 10.0/7.4 |
| 4 | Bore (mm) | 102.0 |
| 5 | Stroke (mm) | 116.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 948 |
| 8 | Compression Ratio | 18.0:1 |
| 9 | Bearing Type | Bush / TRB on specific request |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 021 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 185 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 251 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Oil Bath Washable Type |
| 24 | Silencer | Muffler Type |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.500 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 185 |
| 32 | Engine Gross Weight (kg) | 255 |
| 33 | Overall Dimensions (L x W x H) | 525 x 590 x 835 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 660 x 908 |

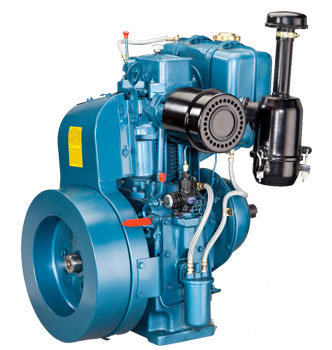

12.0 HP Air Cooled (VAC 12) (Radial Cowling)
Specifications
Robust & Sturdy, Optimal Fuel efficiency, Low maintenance costApplication
Gensets,Sugarcane Crusher, Construction equipments, Turbine Pump, Poso Mill, Marine, Mining applications| No. | Item | Technical Data |
|---|---|---|
| 1 | Method of Cooling | Air |
| 2 | No. of Cylinder | 1 |
| 3 | Rated Power - B. H. P. / kW | 12.0/8.83 |
| 4 | Bore (mm) | 114.3 |
| 5 | Stroke (mm) | 120.0 |
| 6 | Rated R. P. M. | 1500 |
| 7 | Swept Volume (CC) | 1230 |
| 8 | Compression Ratio | 18.0:1 |
| 9 | Bearing Type | TRB |
| 10 | Method of Starting | Cold Starting with the help of Starting Handle / Electric Start can be built up on specific request |
| 11 | Engine Rotation | Standard Rotation Clockwise facing Flywheel / Anticlockwise can be built up on specific request |
| 12 | Governor Type / Class | Centrifugal / B1 Class (A2 if required) |
| 13 | Fuel Oil | High Speed Diesel (Sp. Gr. 0.82 / 0. 84) |
| 14 | Fuel Tank Capacity | 11.0 Lts. / 20.0 Lts on specific request |
| 15 | Fuel Injection Timing by Spill Cut Off Method | 27° BTDC |
| 16 | Fuel Injection Equipment | MICO make Nozzle Holder 9 430 032 155 |
| Bosch Pump 9 410 031 033 | ||
| Injection Release Pressure 190 / 210 kg / cm2 | ||
| 17 | Sp. Fuel Consumption gms / bhp - hr | 179 |
| 18 | Sp. Fuel Consumption gms / Kwhr | 230 |
| 19 | Fuel Filter Type / Capacity (Lts.) | Paper Type (Replaceable) / 0.5 |
| 20 | Bumping Clearance (mm) | 1.14 - 1.27 |
| 21 | Valve Tappet Clearance Inlet (mm) | 0.18 |
| 22 | Valve Tappet Clearance Exhaust (mm) | 0.20 |
| 23 | Air Clearaner | Vertical Tractor Type |
| 24 | Silencer | Big Sumo |
| 25 | Lubrication System | Plunger Pump |
| 26 | Lub. Oil Sump Capacity (Lts.) | 3.000 |
| 27 | Lub. Oil Strainer | Perforated Tin Sheet Washable Type |
| 28 | Lub. Oil Grade | Perforated Tin Sheet Washable Type |
| Temp 5° C & Below - SAE 10 | ||
| Temp 5° C to 34° C - SAE 30 | ||
| Temp 34° C & Above - SAE 40 | ||
| 29 | Crank Shaft Height (mm) | 203 |
| 30 | Foundation Bolt Spacing (mm) | 292 x 140 |
| 31 | Engine Net Weight (kg) | 192 |
| 32 | Engine Gross Weight (kg) | 277 |
| 33 | Overall Dimensions (L x W x H) | 525 x 590 x 835 |
| 34 | Overall Packing Dimensions (L x W x H) (mm) | 762 x 724 x 971 |
